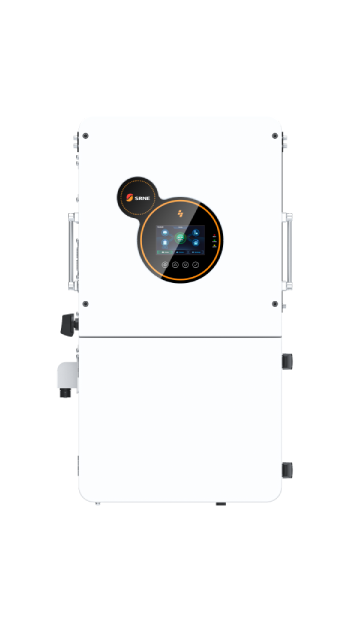

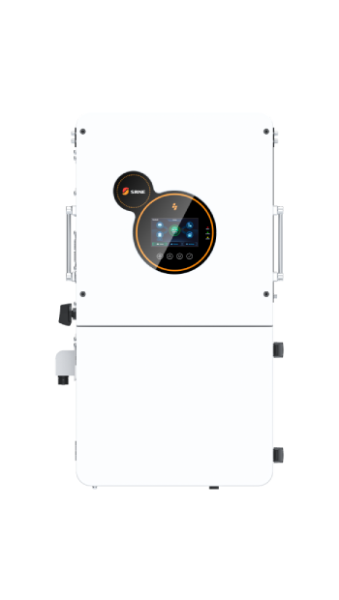

SRNE HESP Series Split-Phase Hybrid Solar Storage Inverter (4–6.5kW)

Product Description

Power your home with confidence using the SRNE HESP series — a smart, split-phase hybrid inverter designed for North American residential solar + storage systems. Available in 5kW, 6kW, and 6.5kW models, it delivers clean backup power, seamless grid interaction, and intelligent battery management.

Key Features:

• Split-Phase Output (120/240Vac): Perfectly matched for standard US/CA home wiring — powers both 120V and 240V appliances without extra equipment.
• High Unbalanced Load Support: Delivers up to 4500W on single-phase unbalanced loads — ideal for running heavy appliances like well pumps or AC units during outages.
• Flexible Battery Compatibility: Works with 48Vdc lithium or lead-acid batteries (voltage range: 40–60Vdc) — choose based on budget or performance needs.
• Fast Grid & Hybrid Charging: Supports up to 120A–140A max charging current from grid or solar — recharge batteries quickly even under low sunlight.
• Smart Monitoring & Control: Built-in display and app connectivity let you track energy flow, set priorities, and manage loads remotely.

Available Models:

• HESP4850U120-HUS – 5000W rated output | 120A max grid charge
• HESP4860U140-HUS – 6000W rated output | 140A max grid charge
• HESP4865U140-HUS – 6500W rated output | 140A max grid + hybrid charge

System Specs:

• Rated Frequency: 50/60Hz auto-sense
• Battery Voltage: 48Vdc nominal (40–60Vdc operating range)
• Max PV Input: Compatible with high-voltage strings (check full spec sheet for MPPT details)

Install the SRNE HESP series to cut bills, gain energy independence, and keep your home running — no matter what the grid does.
